Zeus — Software Defined Radio

Station console · OpenHPSDR

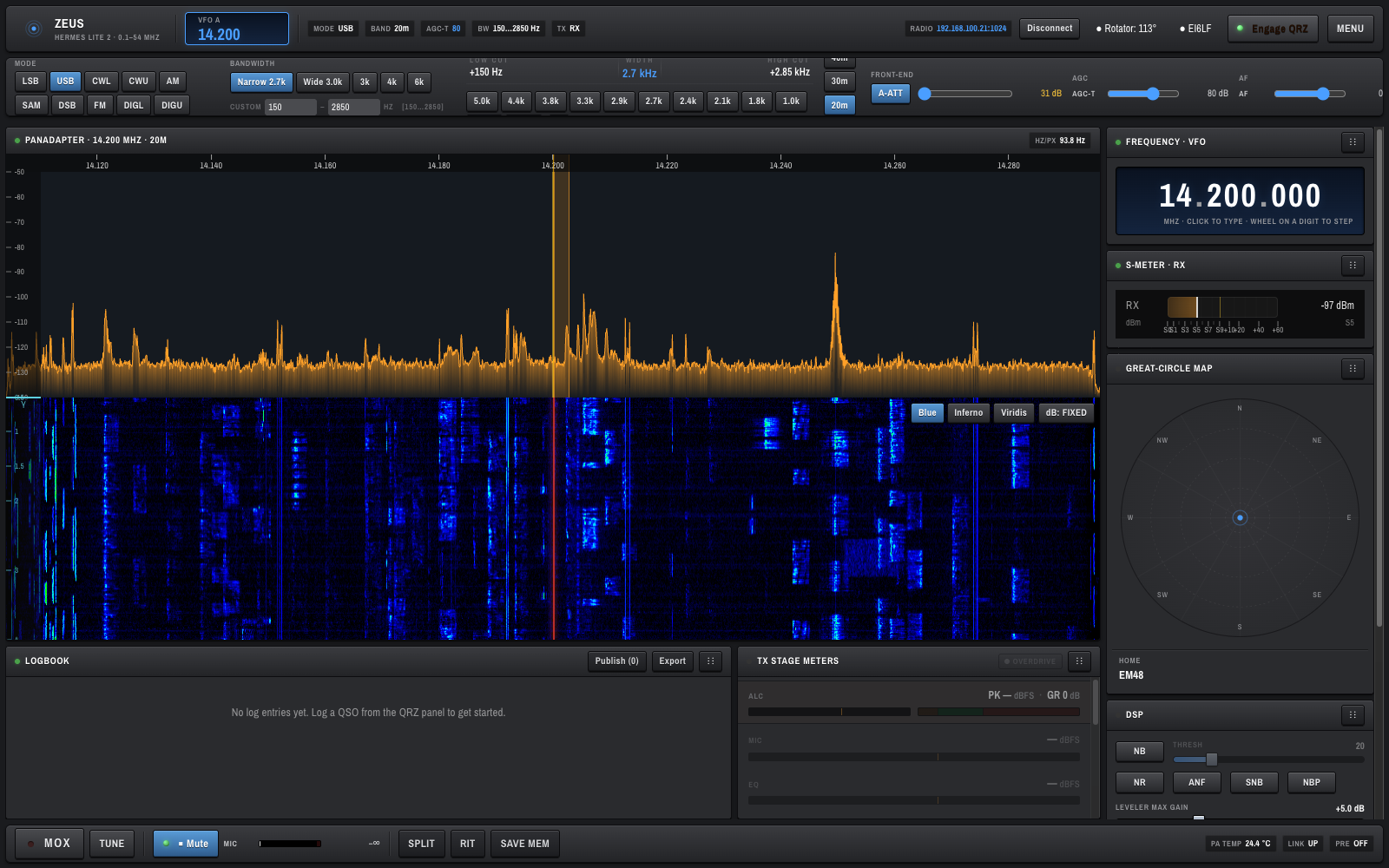

A WebGL-native console for Hermes-Lite 2 and ANAN-class radios. Click-to-tune panadapter, Zeus-grade DSP, protected transmit — on Windows, macOS, and Linux.

Desktop download

Sweep to tune · click the band to key a carrier

P1 + P2 native Both OpenHPSDR protocols, discovered in parallel on your LAN.
WDSP inside The DSP engine behind Thetis, loaded natively via P/Invoke.
Four platforms Windows x64 and ARM, macOS, and Linux installers.
Open engine GPL v2+ station engine, in the PowerSDR–OpenHPSDR–Thetis lineage.

Signal chain

Everything an operating position needs, in one console

Panadapter in 2D — and 3D

WebGL-rendered spectrum and waterfall with click-to-tune, zoom, and drag-pan. One button extrudes the band into a WebGPU 3D surface where time becomes depth — same tuning contract, same overlays.

Digital, without the plumbing

Native FT8 / FT4 and FreeDV digital voice inside the console — decodes, auto-sequenced QSOs, automatic clock-drift compensation. No WSJT-X, no virtual audio cables, no CAT loop-back.

Transmit, protected

PTT, TUNE, and mic uplink with TX stage meters, SWR-trip and TX-timeout protection. PureSignal linearization on Protocol 2 with four-patch convergence.

A broadcast TX chain — plus your plugins

Noise gate, 10-band EQ, compressor, exciter, bass, and reverb in signal-flow order, with off-air Preview and per-block A/B bypass — then VST3 and Audio Unit hosting for the studio effects you already own.

A logbook that blooms

A slim docked table that pops out into a full logging workspace: contact history, a 3D NASA globe, DX radar, and DXCC / WAS / grids analytics. ADIF in and out, LoTW via your own TQSL.

The whole station in one bundle

Amplifier panels for RF2K-S, KPA500, and SPE Taurus, VK3AMP Band Director, HF-AUTO tuner, ZeusChat operator voice and text, and a WAV recorder — all switches in one feature catalog, updated as one.

The feature suite

Everything ships with Zeus. You choose what appears.

One bundle, one update — a catalog of switches instead of a folder of installers. Scroll through the console's state of the art; every frame below is the shipping UI.

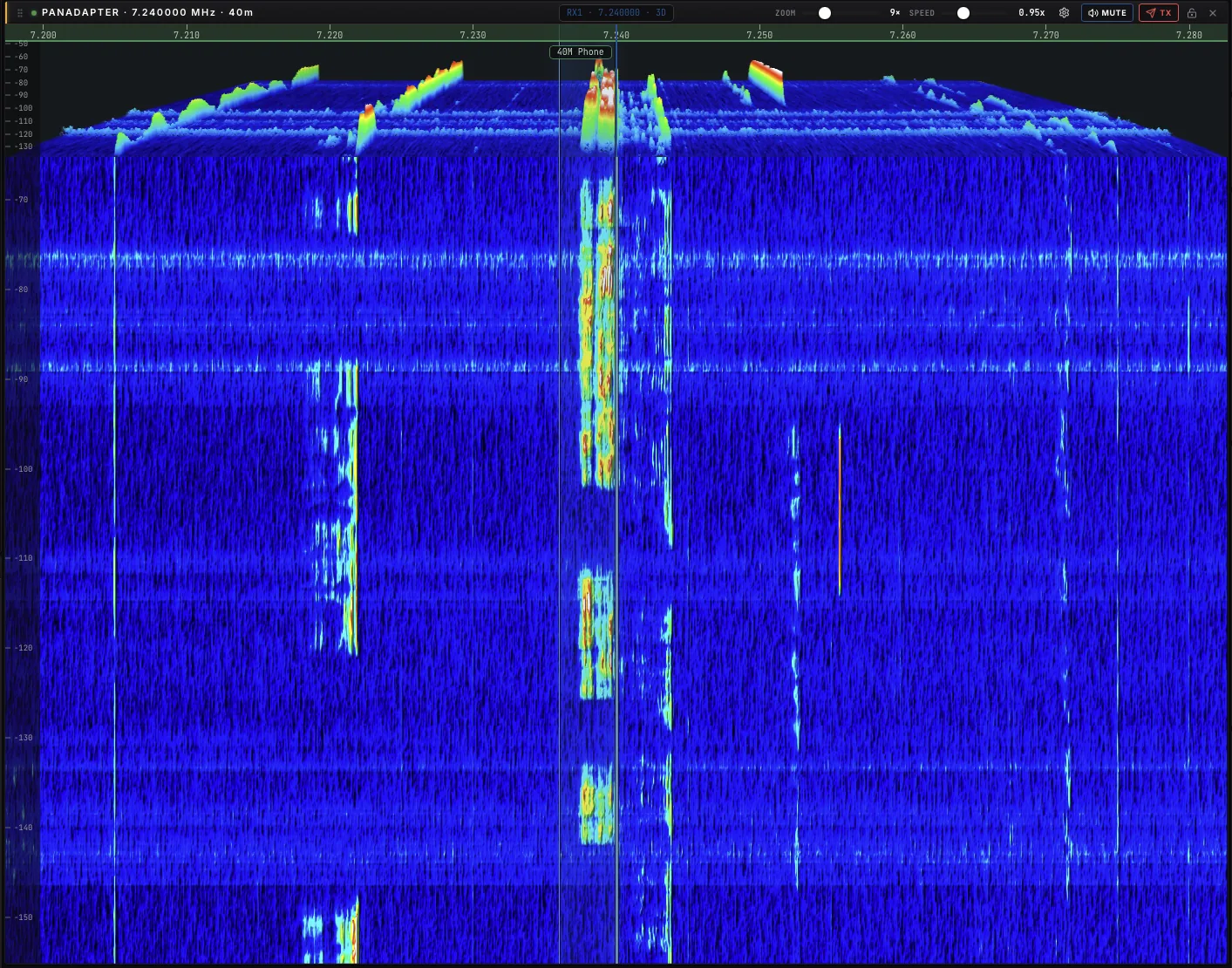

Zeus panadapter in 3D mode: the spectrum extruded into a shaded surface over time, above the classic blue waterfall.
01 / Spectrum 3D spectrum and waterfall — the band's recent history as shape, not just colour

Interface

A dense station console that still scans cleanly

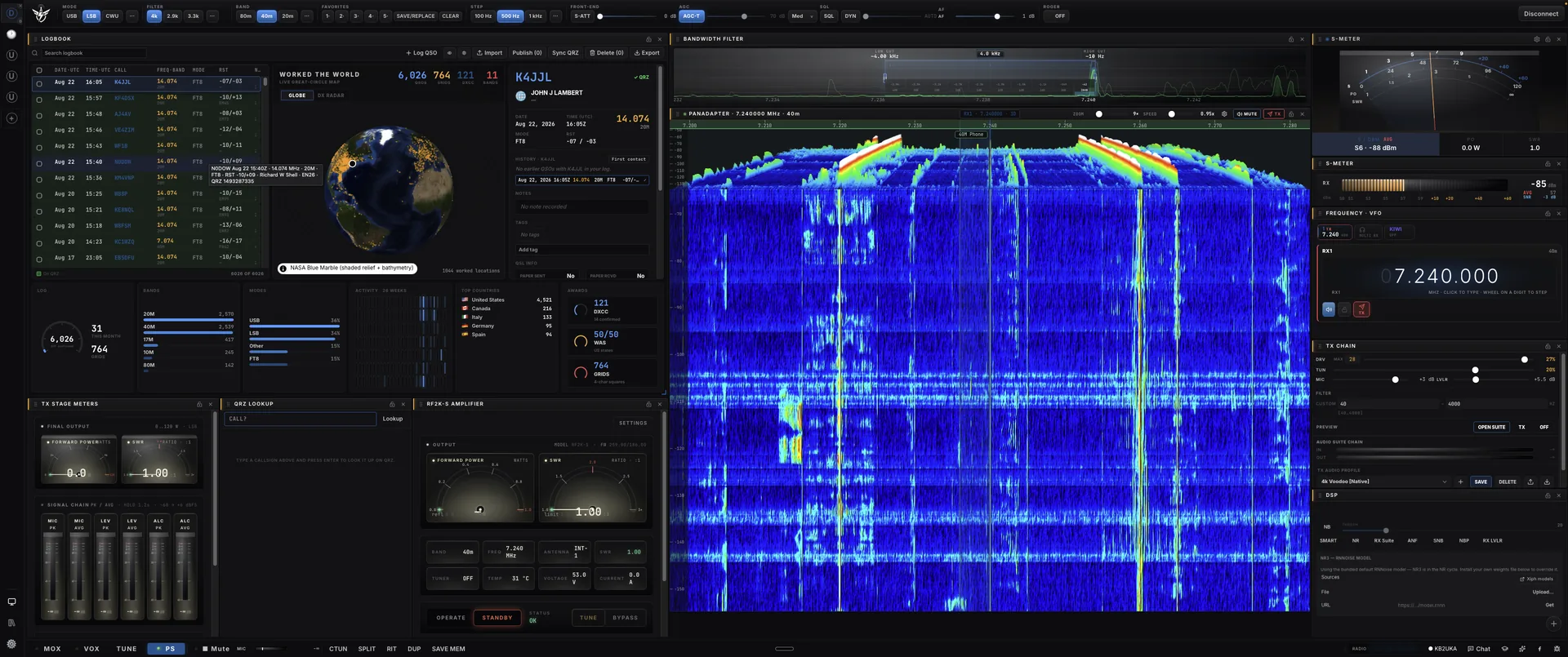

Zeus operating on 40 metres with the logbook, worked-the-world map, bandwidth filter, panadapter and waterfall, S-meter, VFO, TX chain, amplifier control, and transmit stage meters all on screen.
01 / ConsoleFull operating console — logbook, band view, waterfall, VFO, TX chain, and station meters in one layout

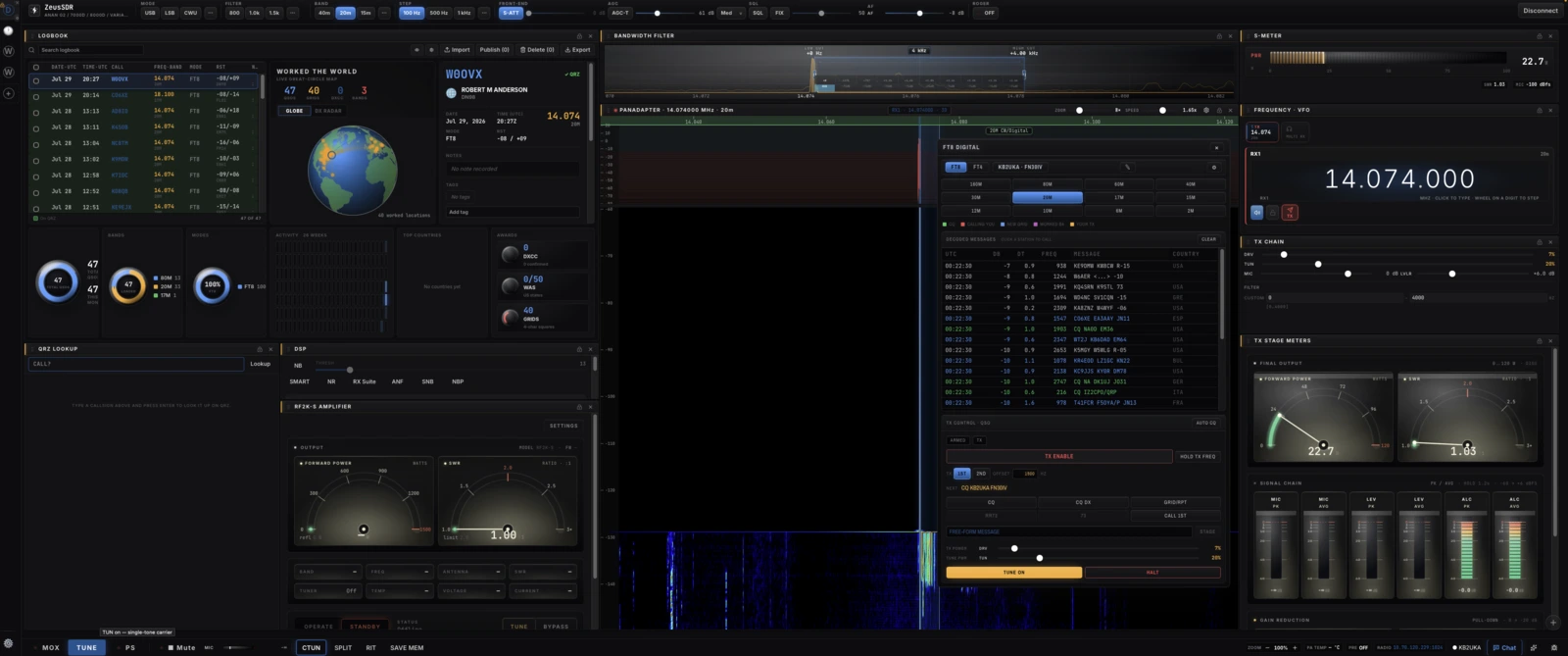

Zeus on 20 metres with the FT8 digital panel open, showing decoded messages, band selection, and transmit controls beside the panadapter.
02 / DigitalFT8 decoding and QSO control sit beside the band view, not in a separate program

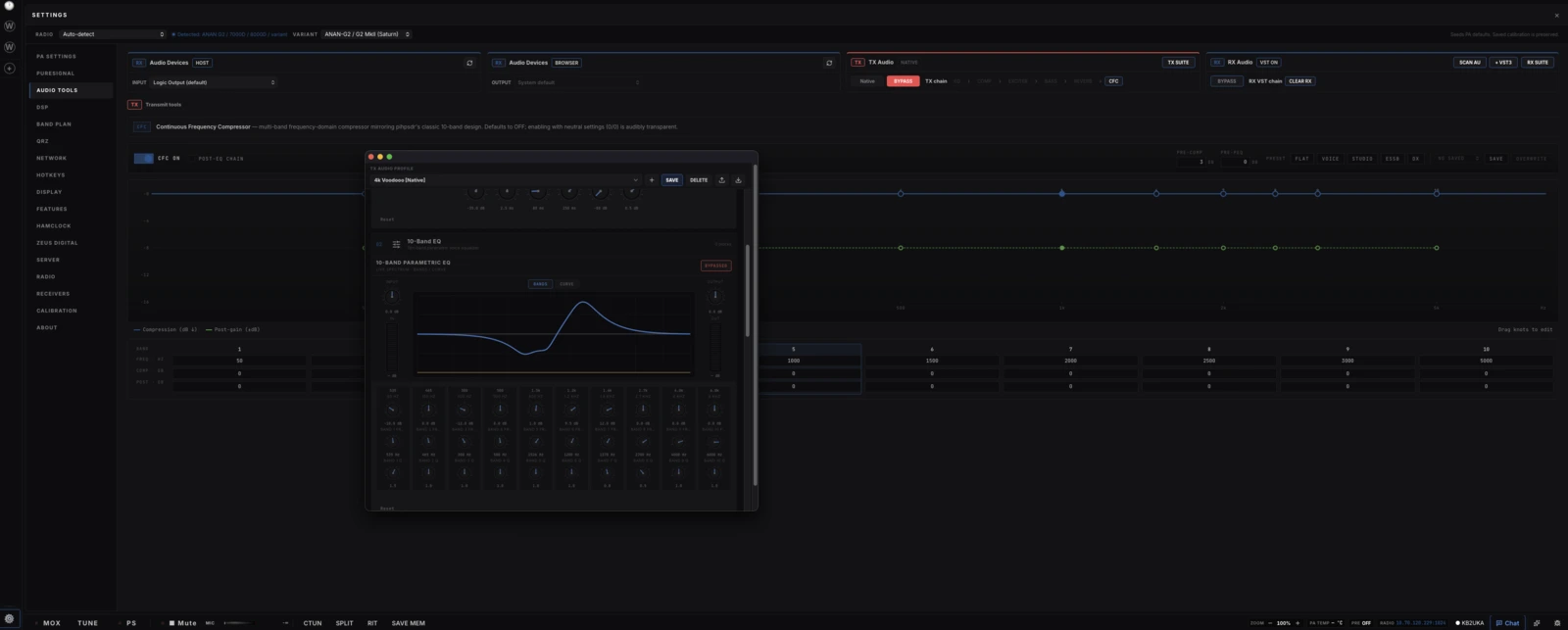

Zeus settings on the Audio Tools page with the continuous frequency compressor and a transmit audio profile window showing a 10-band parametric equaliser.
03 / TX audioTransmit audio tools with saved profiles, multi-band compression, and a 10-band parametric EQ

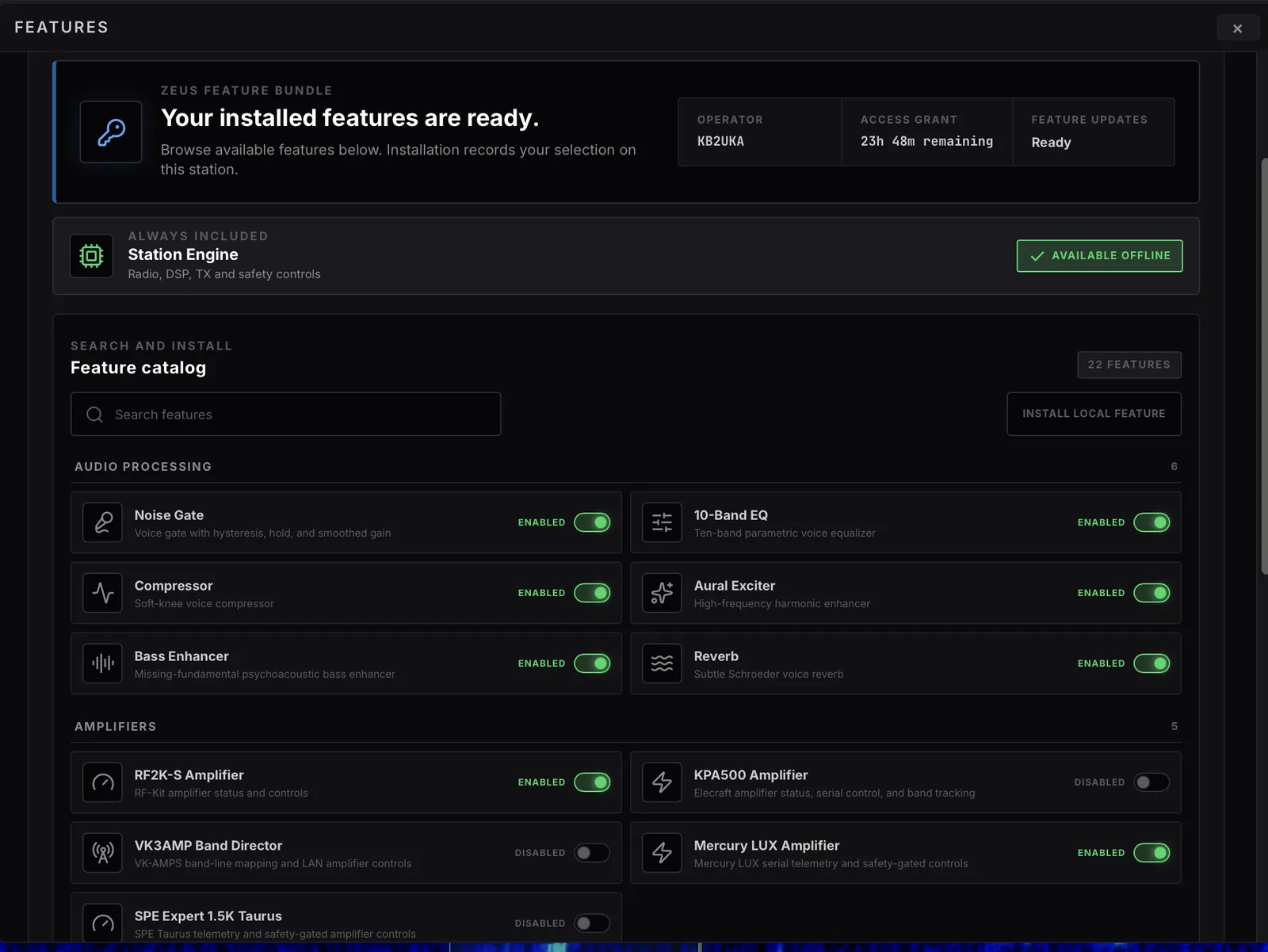

The Zeus Features catalog window listing the feature bundle with per-feature enable toggles for audio processing blocks and amplifier integrations.
04 / CatalogEvery feature is a switch in one catalog — nothing to install, nothing to reconcile

Verified hardware

Tuned on real radios, not simulators

Protocol 1

Hermes-Lite 2

Receive is solid; transmit verified on FM and TUNE. Drive and receive paths are HL2-specific, not generic assumptions.

RX + TX verified
Protocol 2

ANAN G2 & G2 MkII

Receive verified 80m–10m on Orion MkII firmware, with a clean on-air carrier via TUNE and MOX. PureSignal converging on G2 MkII.

RX + TX verified
Protocol 2

ANAN-100D & Angelia

Receive verified, with S-ATT step attenuator and preamp control wired straight to the radio.

RX verified

Running a Hermes, Metis, or older ANAN board? Those aren't wired up yet — the project is open, and a PR from someone with the hardware moves it to the top of the list. Bring your radio →

Download

The current build, matched to this device

Windows x64 or ARM, macOS, or Linux — the release panel reads the build manifest and hands you the right installer, with every other package and its checksum one click away.

Release channel Current builds
Live manifest

Detecting this device...

All downloads every platform · checksums
